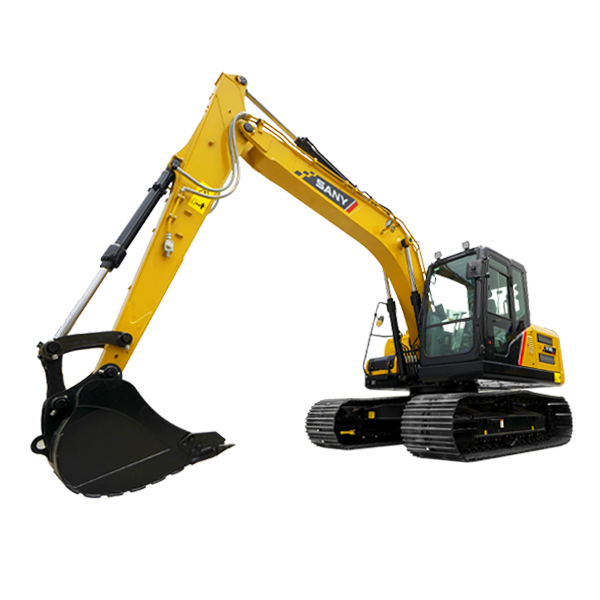

รถขุด SY140C Super

รถขุดขนาดกลาง SY140C Super รถขุดขนาดกลาง Medium Excavator รถขุดรุ่นนี้เป็นรุ่นยอดนิยม เหมาะกับงานขุดบ่อ งานท่าทราย งานก่อสร้าง เป็นรถขุดที่สามารถใช้งานได้หลากหลาย

รถขุดไฮโดรลิค ยี่ห้อ SANY รุ่น SY140C Super
เครื่องยนต์ ISUZU 4JJ1XDJAG-01-C3
กำลังสูงสุด 97.85 HP (73 kW)/2,000rpm
ความจุบุ้งกี๋ 0.60 ลูกบาศก์เมตร
ความยาวแขน 3 เมตร
ตีนตะขาบขนาด 700 มิลลิเมตร
น้ำหนักปฏิบัติงาน 14,200 กิโลกรัม

Product specification+ -
Operating Weight	14,200 กก.
Bucket Capacity	0.6 ㎥
Engine	ISUZU 4JJ1XDJAG-01-C3
Maximum Horsepower (kw)	73/2000 kW/rpm
Maximum Horsepower (hp)	97.89Hp/2000rpm
Maximum Torque	365N.m/1600rpm
Hydraulic Pump	Kawasaki (K7V63DTP1X9R)
Control Valve	Kawasaki (KMX13RB)
Swing Motor	Doosan (TSM86-MBEC312D)
Travel Motor	NABTESCO (GM21VL)
Carrier Wheel	1
Roller	7
Width of trackpad	700 mm
Walking speed (high/low)	5.4/3.5 km/h
Swing speed	12 rpm/min
Gradeability	35˚
Bucket Digging Force	103 kN
Arm Digging Force	60.3 kN
Ground Digging Force	31.2 kPa
Fuel Tank Capacity	240 L
Hydraulic Tank Capacity	150 L
Engine Tank Capacity	15 ลิตร
Cooling Tank	10 ลิตร
Travel Motor	2.6 ลิตร
Dimensions (mm)+ -
a. Overall length	7,800
b. Overall width	2,690
c. Overall height	2,815
d. Upper width	2,490
e. Bulldozing height	2,740
f. Standard track shoe width	700
g. Width between tracks	1,990
h. Crawler ground length	425
i. Swinging radius	2,240
j. Width between wheels and motor	2,930
k. Track shoe length	3,665
Operating range (mm)+ -
a. Maximum digging height	9,162
b. Maximum unloading height	6,736
c. Maximum digging depth	6,280
d. Maximum digging depth with vertical boom	6,001
e. Minimum slewing radius	8,655
f. Height at maximum slewing radius	2,610
g. Height at maximum slewing radius	6,549

High efficiency and low consumption engine, developed by SANY With 2 hydraulic voltage steady pumps that coordinate with the engine to create pump power that is always ready to work according to excavating type. The excavator has different 4 power engine modes for your different types of work.

8% work efficiency more than the previous model. The newly developed controlling system works faster and more precisely which takes less time to command between the controlling system and hydraulic system and brings more to your work.

10% Less fuel consumption thanks to the excellent coordination between the engine controlling system and the pump system, the excavator is incredibly energy saving.

9.5% more powerful digging force than the previous model supporting the efficiency of pressure by increasing volume flowrate and hydraulic pressure

Electronic control brings the best from engine efficiency The electronic control system can bring the most from horsepower. SANY has developed a controlling box with checking sensors that can work precisely all the time, along with automatic customized power according to the digging force without exceeding the engine's power

The world's leading user of Positive Flow Control System This system is working by receiving the command from the operator through joystick control to use fuel as only needed

Faster swing speed The circuit that increases the arm's speed is working when the arm is being extended. The hydraulic oil in the axle will be sent back to the fuel pump instead of to the tank with protecting valve as a controller. This way, the swinging force is faster

Safe and comfortable operator cabin
The operator cabin is made with high-quality materials and a luxurious interior design. With a panoramic view, impact-reduced seat, and noise canceling feature, you can fully focus on your work efficiently.

High-teach Manufacturing
The assembly of SANY's machines is divided into two branches: RGV manufacturing and automatic welding robot manufacturing. Robotic manufacturing can ensure that our products have the correct, strong, durable body structure.

Convenient maintenance
- For changing engine oil, the draining valve was designed to be outside of its lid, so you don’t have to remove the lid.
- The lid is also big and can be opened and cleaned immediately, which is easy to maintain.
